Friday, August 31, 2018

Free SpankMyRevit v1.3

It's been a busy week posting about the Revit Add-ons inspired SpankMyRevit, but this should be the last, at least for awhile.

As we mentioned previously, Bird Tools developed the add-in independently while we were working with another developer in parallel. Over the past few days, as Bird Tools became aware of some of our original plans, they've kindly incorporated them into the app.

In version 1.0, SpankMyRevit emitted a single slapping sound. Now, in version 1.3, if <Alt> + <S> is pressed multiple times with less than 5 seconds between key presses, a sequence of sounds are played, in the following order:
  1. "Bad Revit!" + [slap] + "Ow!"
  2. [Slap] + "Ow!"
  3. [Slap] + "Ow!"
  4. [Slap] + louder "Ow!"
  5. [Slap] + louder "Ow!"
  6. [Slap] + louder "Ow!"
  7. [Slap] + "Oh, c'mon!" + Excessive Frustration Exception message box

Wednesday, August 29, 2018

SpankMyRevit – but don't Abuse it! An Update

Let's start at the beginning. Back in April, I posted a few prank articles featuring fictitious Revit add-ins. One of them, SpankMyRevit, for punishing Revit for not doing what one wants, garnered quite a bit of attention in terms of pageviews and feedback. It was just a little funny idea I had, but all feedback was positive and of the type, "I wish this was a real app!" So, shortly afterwards, I reached out to a developer friend of mine and he agreed, in his free time, to make the idea into reality, and I was working with him on this. Unfortunately, owing to his workload and other commitments, and especially to my own health issues, the app didn't get past the Alpha testing stage before...

Developer Bird Tools took the initiative to develop the app independently, cleverly using it to promote their business in the process. I thought this was great, and posted about the app a couple days ago.

Monday, August 27, 2018

Free SpankMyRevit! For Real this Time! (Updated)

For April Fools Day this year, we posted a few gag posts. One in particular seemed to resonate with our readership, SpankMyRevit, a free faux app for "punishing" Revit. Now, Bird Tools has converted the idea into reality.

Disclaimer: We at Revit Add-ons DO NOT condone physical violence of any kind, including domestic violence. This app is intended to be humorous. If you cannot take it as such, please do not use it. Also, when using, please be considerate of co-workers.

Simply download and install the add-in. After restarting Revit, a toggle item will appear on the Bird Tools tab.



Wednesday, August 15, 2018

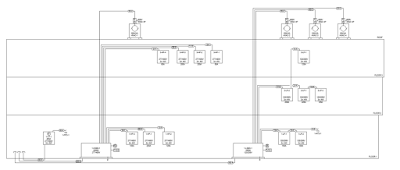

QuickRiser – Automatic Riser Diagram from Electrical Connections

From the Autodesk App Store:

QuickRiser detects all of the electrical connections in your Autodesk® Revit® Model and automatically draws your electrical riser diagram saving you hours of drafting work. No longer do you have to worry about keeping electrical information consistent between the model and riser.


Wednesday, August 8, 2018

Free Construction Material Library for EU

From the Autodesk App Store:

This construction Material Library can be used in most EU countries. The library includes manufacturer specific data about the materials like the material's density, thermal conductivity, and thickness. As such it is easier to include a specific material with real parameters onto a wall component and get an appropriate heat transfer coefficient (U value) directly. Change a material or thickness and this value changes accordingly. Additional information that is added into the material library is the material's thickness selection that helps to filter out the most appropriate combination. All material information is based on manufacturer datasheets, including a link (URL) from where additional information can be found. The library is available in English and Estonian. Although the library reach is the same in both cases, the descriptions are different (English or Estonian).

Material Subclasses

CCupgrader – The Self-Proclaimed "Fastest Way of Upgrading Multiple Files"

From the Autodesk App Store:

CCupgrader is the fastest way of upgrading multiple Autodesk® Revit® files. CCupgrader allows the user to upgrade Revit files to the current version of Revit. The tool allows to upgrade projects (workshared or local), families, project, family templates and includes more advanced options for cleaning files of line patterns, materials and fill patterns. CCupgrader also offers multiple options for saving and working with workshared projects. The tool preserves a tree folder system structure.

This tool allows you to specify a source folder containing Revit files and have every file in that folder upgraded to the current version of Revit.

Window of the CC Upgrader

Tuesday, August 7, 2018

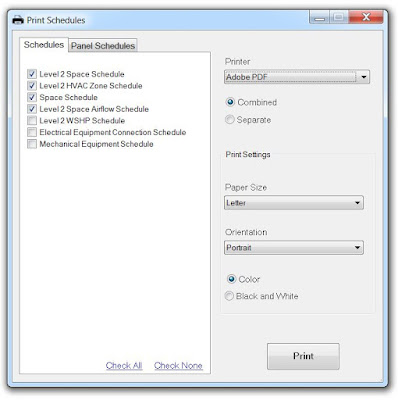

Schedule Print and PDF

From the Autodesk App Store:

Prints schedules and panel schedules by printer or exports them to PDF.

Instructions:
  1. Select schedules/panel schedules
  2. Select printer
  3. Select paper size, orientation and color
  4. In case of printing PDF, select to print to single file or separate file.

In case of PDF printing, the output file(s) saved location and names will be handled by the PDF printer.

Refer to the PDF printer settings to modify these options.


Thursday, August 2, 2018

Free Stabiplan Openings Manager for Structural Engineers

From the MEPcontent website:

BIM means collaboration and this App is specifically designed for it. As a structural engineer, you can now easily communicate with MEP engineers and contractors to manage openings at high speed.

Combining openings, approving or declining opening requests, creating voids in the architectural or structural model, as well as creating your response file can all be done quickly and effectively.



Stabiplan Openings for MEP

From the MEPcontent website:

Take control over your MEP openings in Revit thanks to this App which facilitates an optimal cooperation with structural engineers so that you can detect and prevent clashes in BIM projects at an early stage.

You can now generate openings with increased accuracy on places where MEP elements (like ducts or pipes) are clashing with structural elements (like walls, floors or ceilings) – even when working with linked models.

Communicate in real time: simply send an opening request to the structural engineer, get a response file back and load it directly into your model to have the most up-to-date status for each opening.



Stabiplan Productivity Tools

From the Autodesk App Store:

This App includes six powerful time-saving tools:
Connect elements, Connect & rotate elements, Connect & copy elements, Rotate elements around another element, Rotate elements in free space, Reconnect elements

Connect elements with just 2 clicks
Simply select the element you want to connect and the element you want to connect into. No need to align and drag the element to the position where it should be connected. Or connect and rotate in one run with just 3 clicks.

Design faster in 3D
No need to go through all the steps imposed by the native Autodesk® Revit® functionalities anymore to connect, copy, and rotate elements or entire systems; with just a few clicks you can now perform these actions in any view, including 3D views, without having to create separate section views.

Wednesday, August 1, 2018

Free GeoToCAD™ for Autodesk® Revit® – Bi-Directional Connection with ArcGIS®

From the Autodesk App Store:

GeoToCAD™ for Autodesk® Revit® is a technology preview to demonstrate establishing a bi-directional connection between Revit, and ArcGIS®, a geospatial platform.

The solution offers the following functions:
  • Connect to ArcGIS;
  • Export a 3D model from Revit to ArcGIS;
  • Import a selected area of the Earth surface from ArcGIS to Revit;
  • Place a model on the selected surface and then preview this model on ArcGIS map;
  • Save a model placed on the surface as a 3D PDF file.


Free Warchart – Warnings (Pie) Chart

From the Autodesk App Store:

Warchart stands for Warnings (Pie) Chart. Warchart is a visual interactive tool that helps you navigate, isolate and ultimately eliminate Autodesk® Revit® Warnings. The real-time update of the chart will follow your progress and give you immediate feedback.
