Sunday, December 30, 2018

The Week That Was in Revit Add-ons for December 24-30, 2018

Predictably, the week between the Christmas and New Year holidays was a quiet one for Revit add-in related news. In fact, There were no new add-ins published and no new updates on the Autodesk App Store for the week, so we took the opportunity to look around the Internet and to scratch a few items off our to-do list.


We posted about Attach It for Revit for attaching "any file" to a Revit model (PDF, DOC, XLS, etc.).


We shared a Lumion 9 Review from What Revit Wants.

We updated our roundup of 5-star rated add-ins on the App Store: Critical Mass – 5-Star Rated Add-ins* on the Autodesk App Store for End-of-Year 2018, Now Expanded!

For add-in publishers, conference organizers, Autodesk channel partners, and consultants, we posted about out new Advertising page. Head on over and check it out kids!

Lastly, we posted a couple items about the world of computational design with Goodbye Project Fractal, Hello Project Refinery and Tutorial – Piling with Revit 2019, Dynamo and AutoCAD Civil 3D 2019.

Saturday, December 29, 2018

Attach It for Revit – Attach Any File (PDF, DOC, XLS, Etc...)

From the Boost Your BIM website:

With the current version of this tool, PDF files can be converted to images and imported into drafting views. All other file formats can be attached to the Revit file and then viewed in their native viewers but pushing the View button in the Attach It dialog.

Attach It is brought to you by Boost Your BIM. It's priced at US $9.00.

This add-in is compatible with Revit 2019, 2018, and 2017.

There's more information available on the Boost Your BIM website.

Lumion 9 Review

From the What Revit Wants website:

Winning the Job – A Lumion 9 Review

By Michael Clothier
December 21, 2018

I’ve recently had the chance to put the new Lumion 9 through it’s paces.

Why Lumion

At Virtual Built Technology amongst the many BIM services we offer, we also create construction visualisations and animations.

A Demo Reel / Mashup of some recent work…
Over the years we’ve played with many software solutions to get the kind of results our clients are after. Each time we do this kind of work it’s slightly different, either a client will require something different, there’s all sorts of budgets, a client might want to focus on a specific area, and what we can get our hands on in terms of models etc, is always different. In the past we’d model in Revit and Sketchup, federate and visualise in Navisworks or 3DS Max, animate in Navisworks or 3DS Max and then post production in iMovie or Motion and Final Cut. A complex high end animation, might see us jump in and out of several different applications several times over before completion.

However, since Lumion has come along, we’ve been able to significantly increase our output by simplifying the often many different steps we’d need to take. And whilst it isn’t quite a one stop shop, it is definitely made life a lot easier.

Read more on the What Revit Wants website »

Goodbye Project Fractal, Hello Project Refinery

From the Dynamo website:

Introducing Project Refinery

November 12, 2018

We have learned a great deal from Project Fractal. Initially released in July 2016, there are over 3500 people who have tried their hand at coding their design logic in Dynamo and automating design option creation with Fractal.  Today we are announcing that Project Fractal has evolved into a new beta project called Project Refinery.  Project Refinery not only lets you create design options with many of the same methods that existed in Fractal, but it also allows you to set goals and optimize for those goals.  When you choose to maximize or minimize designated outputs, Refinery will return the best options.  Refinery also solves some of the problems we heard around not being able to run custom nodes including Python nodes.  Refinery runs locally and allows custom code to participate in design option generation.  Refinery will run in Dynamo for Revit or Dynamo Sandbox and includes a node to cache Revit data for use in option generation.   Refinery is still a beta project. There are rough edges, but if you would like to try it out and work with us to advance generative design for AEC we would be thrilled.  You can learn more here:

Tutorial – Piling with Revit 2019, Dynamo and AutoCAD Civil 3D 2019

From the Revit: A Structured Approach blog:

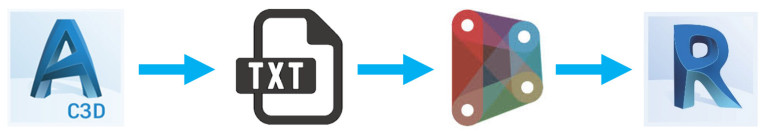

In this tutorial we will look at a simple method to generate piling from a finished ground level to a rock stratum from borehole data. Most of you will now have access to the Autodesk AEC collection but, I often find that people tend to use just one or two tools from this collection which doesn’t return value or efficiency. In this workflow we will utilise Revit 2019, Civil 3D 2019 and Dynamo.

This workflow can also be achieved using Dynamo and Revit to find the intersections between the piling and the surfaces, but this can take quite a while to execute on large datasets, is computationally expensive and will invariably crash the machine.

Continue reading on the Revit: A Structured Approach blog »

Thursday, December 27, 2018

Critical Mass – 5-Star Rated Add-ins* on the Autodesk App Store for End-of-Year 2018, Now Expanded!

Peer reviews can help one to decide on apps to use or purchase. Unfortunately, reviews on the Autodesk App Store can be hard to come by. Apps that have thousand of downloads can have just a few reviews. Furthermore, the App Store's sort-by-rating function doesn't take the number of reviews into account.

Listed below for your convenience are the 5-star rated Revit-related add-ins on the App Store with at least four reviews, sorted by number of reviews, highest to lowest. Add-ins are also separated between free and paid.

This is our second biannual listing. This time out, we've added add-ins for the other applications on the App Store that we cover: Navisworks, BIM 360, Advance Steel, and Robot Structural Analysis.

The add-in that gained the most votes since our last listing was Enscape™  with 14 (for 38 total). For free add-ins, TransferSingle received 10 new votes (for 42 total). The add-in debuting with the most votes is DPR Model Slicer with 12.

And remember, reviews are important. Please take a few minutes to share your own experiences with apps on the App Store by submitting reviews!



COINS Auto-Section Box
Brings fluidity to the Autodesk® Revit® section box when modifying complex areas of a model. Saves seconds when communicating, costly minutes when modeling, and valuable hours throughout a project | Free
 (99 reviews +2 )

Palladio X BIM WindowsLayout
Arrange windows by a scheme | Free
 (61 reviews +6 )

Monday, December 24, 2018

The Week That Was in Revit Add-ons for December 17-23, 2018


From the Autodesk App Store, we posted about the free CAD Link Opener for opening CAD links in AutoCAD or other applications, the free Chameleon for easy view filter creation, the free LODmanager for assigning and managing LOD parameters and for viewing varying levels of LOD, and rvt2VR for publishing Revit models to virtual reality in 1-click. We also belatedly posted about Control Area Reinforcement for comparing actual area reinforcement versus required reinforcement imported from Robot Structural Analysis.


From the App Store, we posted about BIM Repeat Remapper v1.1, which is now free. We also belatedly posted about Bird Tools' Tag Alignment Tool v1.4 and Docuflow v2.6.

For additional App Store updates not mentioned here, see our latest roundup.

Roundup – for Dec 17-23, 2018, New and Updated Revit-Related Add-Ins on the Autodesk App Store

The week of December 18, 2018 was a fairly busy one for Revit-related add-ins on the Autodesk App Store. Five new add-ins were published and another ten were updated.



Control area reinforcement
Add-in compares the actual area reinforcement (floors and walls) and required reinforcement obtained in the program Autodesk® Robot® Structural Analysis | USD 10.00
☆☆ (1 review)
About This Version: Version 4.0.0, 12/21/2018 – New version for checking area reinforcement in Revit.

This app allows users to easily add and manage simple LOD parameters to an Autodesk® Revit® model and also, allows users to analyze levels of LOD in a model by using quick and easy LOD visual filters | Free
☆☆ (0 reviews)
About This Version: Version 1.1.0, 12/19/2018 – Initial Public Release

Control Area Reinforcement – Compare Actual Vs. Required Area Reinforcement Imported from Robot Structural Analysis

From the Autodesk App Store:

Add-in compares the actual area reinforcement (floors and walls) and required reinforcement obtained in the program Autodesk® Robot® Structural Analysis.

Verification of the actual reinforcement with this add-in can be performed after importing the required reinforcement from Autodesk Robot Structural Analysis only.

The results of the comparison are available in the form of isopoles or text values.

The red color of isopoles indicates on the parts of the plate where there is not enough reinforcement or the element does not contain area reinforcement.

To analyze the reinforcement of a single element (or elements), you must select the desired element and then start the add-in. You can choose: an element, its analytics or area reinforcement. Then the results will be displayed only for the selected element (s).

Bird Tools' Tag Alignment Tool v1.4

From the Autodesk App Store:

About This Version

Version 1.4, 12/20/2018
  • Added looping feature for the leader landing location picking process: the user would keep on picking the desired location of the desired taghead until he/she cancels the command whenever he/she is satisfied with the results.
  • Added an experimental feature for a constant landing (distance between the elbow and the leader attachment point) among all tags/text notes.
  • Added support for the Imperial Unit System whenever the initial project template would be an imperial one.
  • Fixed bugs.


The “Bird Tools Tag Alignment Tool” is an Autodesk® Revit® Add-On that aims to arrange Revit TAGS and TEXT NOTES that have been assigned leaders in a neat form, such that their “landing lines” are straight and that all of their leaders are parallel. It proves to be extremely useful in areas that are overpopulated with tags and text notes and thus helps the user move all the tags contained in the aforementioned area to another tag-free area with a single mouse click.

Docuflow v2.6

From the Autodesk App Store:

About This Version

Version 2.6, 12/18/2018
  • New selection method with two gridviews and wider dialog.
  • Advanced filename with unlimited possibilities, including sheet and project parameters.
  • Support to sets of Revit sheets for quicker selection.
  • Publishing of sheets to a single PDF is now supported, including the possibility of reordering the sheet sequence beforehand.
  • Checks Revit build number and prevents Docuflow to run with Revit builds that crash when printing to PDF.
  • Bypasses installing the printer drivers if they are already installed.
  • Autofit of text in the sheet selection to make all text visible.
  • New control to show/hide columns in the sheet selection in the tab Customize.
  • Display error if the user has no permissions to use the PDF printer.
  • Prevents Docuflow beings installed if Revit is runnning to ensure correct behaviour.
  • Supports floating licenses.


Publish all your documents in one operation.
Now it's easy to get high-quality PDF, DWG, IFC and drawing list from the same tool. Just select your sheets and you are good to go. Docuflow makes your drawing issues quick and simple.
